Pirani Gauge Head
Technical Details
- Model No: PGH - 011
- Pressure Range: 0.999 mbar to 10-3 mbar
- End Connection: KF 10
- Sensor: Brass
- Filament: Tungsten

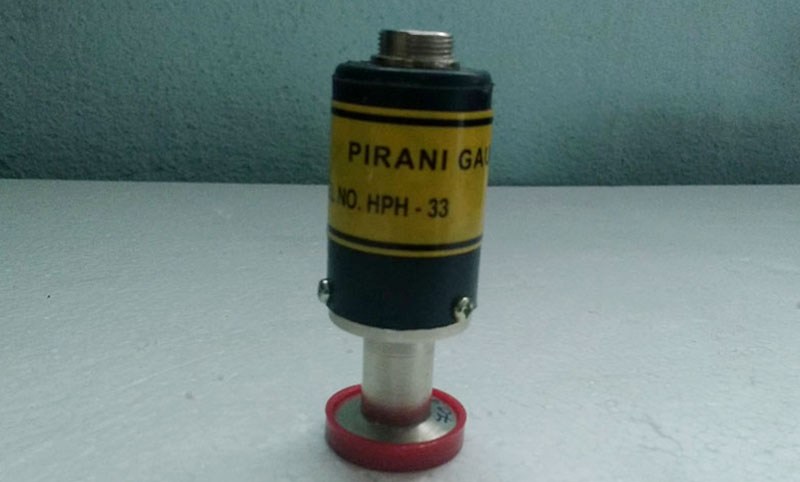

High Pressure Pirani Gauge Head
Technical Details
- Model No: HPH - 33
- Pressure Range: 999 mbar to 10-3 mbar
- End Connection: KF 10
- Sensor: Brass
- Filament: Tungsten

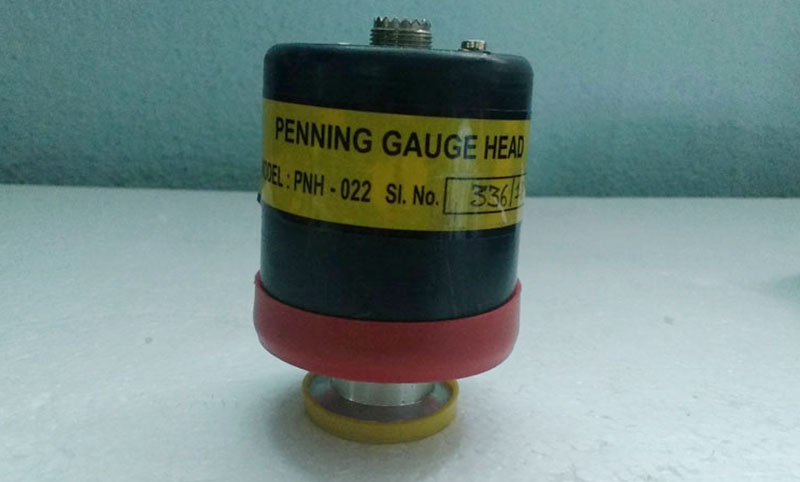

Penning Gauge Head
Technical Details
- Model: PNH - 022
- Pressure Range: 10-3 mbar to 10-6 mbar
- End Connection: KF 25
- AluminiumBody
- Brass Flange
- SS Cathode

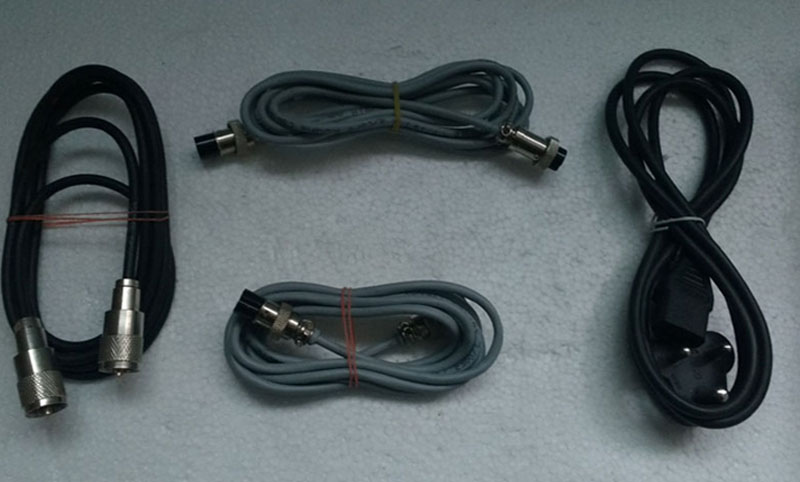

Cables for Pirani, Penning and Mains
Technical Details
- Sensor Cable : 02 Mtr (Standard Length)
- Sensor Cable End Connection : Plug in type at both ends
- Mains Cable : 03 Pin

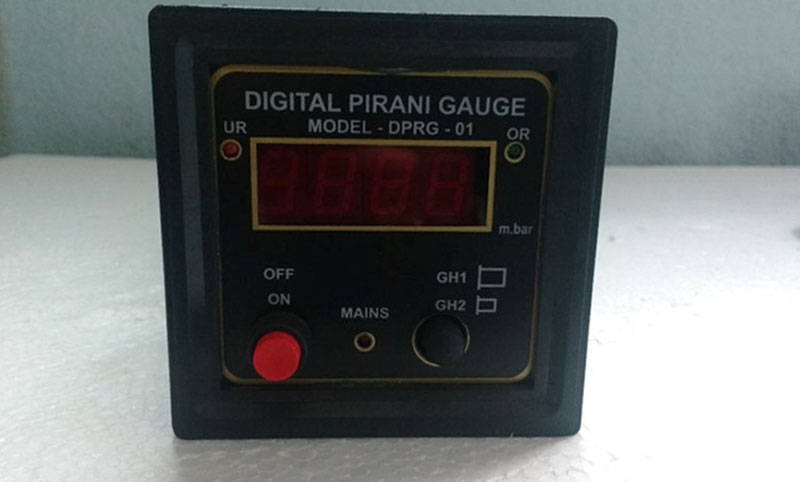

Digital Display Unit for Dual Pirani Gauge Heads
Technical Details
- Model: DPRG - 01
- No. of Gauge Heads: 02 (GH 1 & GH 2)
- Selection Switch for GH 1 / GH2
- Mains: ON / OFF
- Display Pressure Range: 0.999 mbar to 10-3 mbar

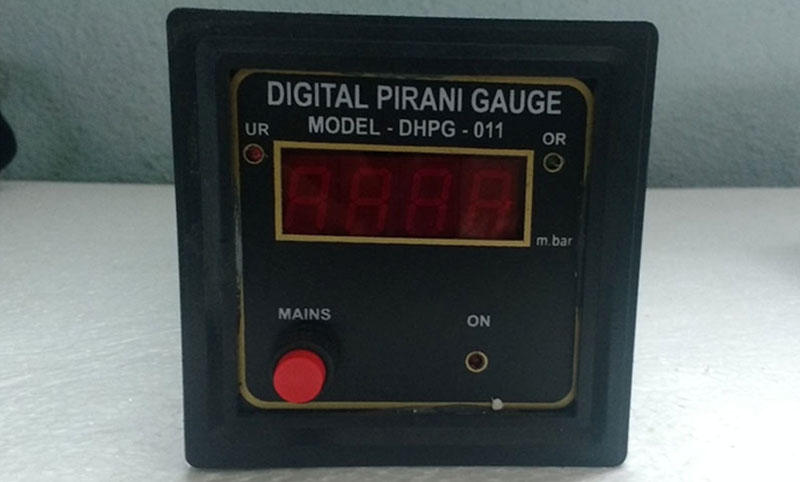

Digital Display Unit for High Pressure Pirani Gauge Head
Technical Details
- Model: DHPG - 011
- No. of Gauge Heads: 01
- Mains: ON / OFF
- Display: Digital
- Display Pressure Range: 999 mbar to 10-3 mbar

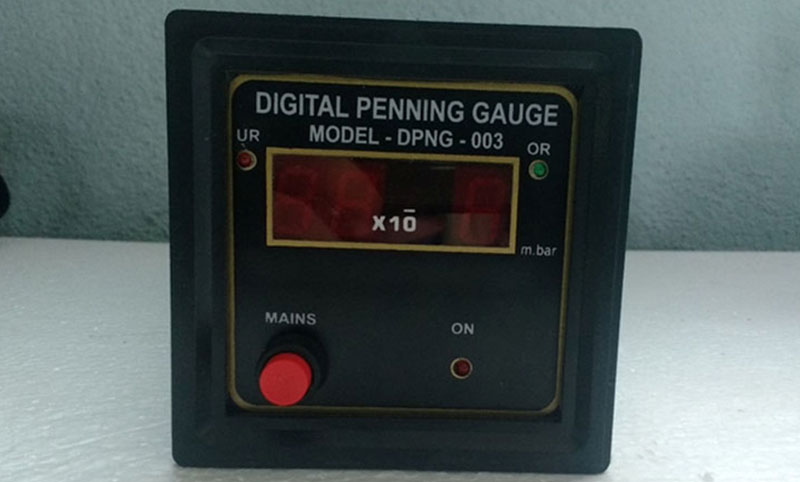

Digital Display Unit for Penning Gauge Head
Technical Details
- Model: DPNG - 003
- No. of Gauge Heads: 01
- Mains: ON / OFF
- Display: Digital
- Display Pressure Range: 10-3 mbar to 10-6 mbar

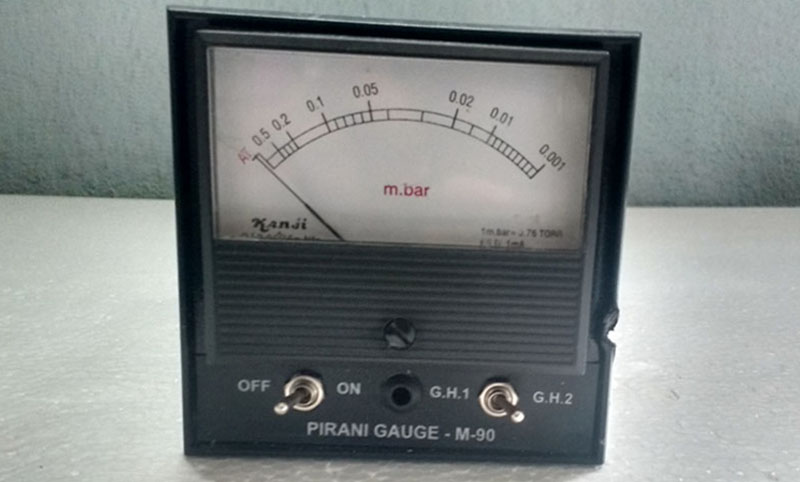

Analog Display Unit for Dual Pirani Gauge Head
Technical Details
- Model: M - 90
- No. of Gauge Heads: 02 (GH 1 & GH2)
- Mains: ON / OFF
- Display: Analog
- Display Pressure Range: 0.005 mbar to 10-3 mbar

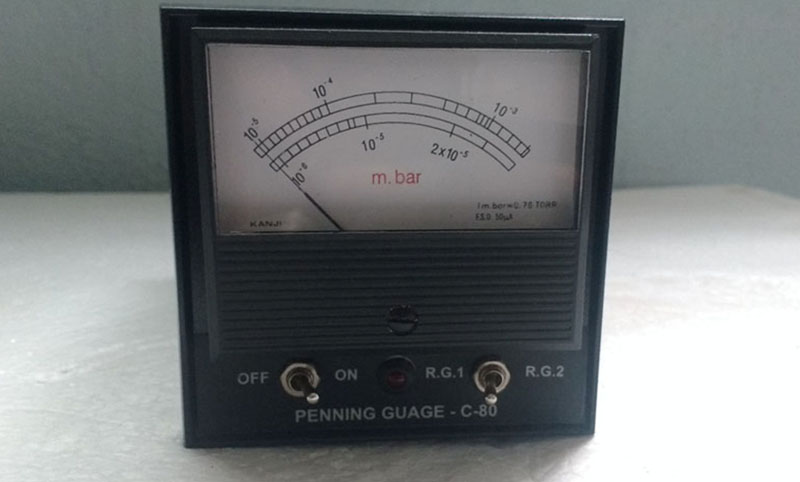

Analog Display Unit for Penning Gauge Head
Technical Details
- Model: C - 80
- No. of Gauge Heads: 02
- Mains: ON / OFF
- Display: Analog
- Display Pressure Range :10-3 mbar to 10-6 mbar
Range 1 Pressure : 10-3 mbar to 10-5 mbar
Range 2 Pressure : 10-5 mbar to 10-6 mbar
Pirani Gauge Heads with Digital Display Unit and Cables
Technical Details
- Number of Sensors : 02
- Measuring Rang e: Atmosphere to 10-3 mbar
- Vacuum Connection : KF 10
- Digital Display Unit
- Cutout Dimension : 92 mm x 92 mm (DIN Standard)
- Mounting : Flush Panel mount
- Sensor Cable : 02 Mtr x 02 Nos.
- Sensor Cable End Connection : Plug in type at both ends
- Mains Cable
- Power Supply: 230 V , 50 Hz

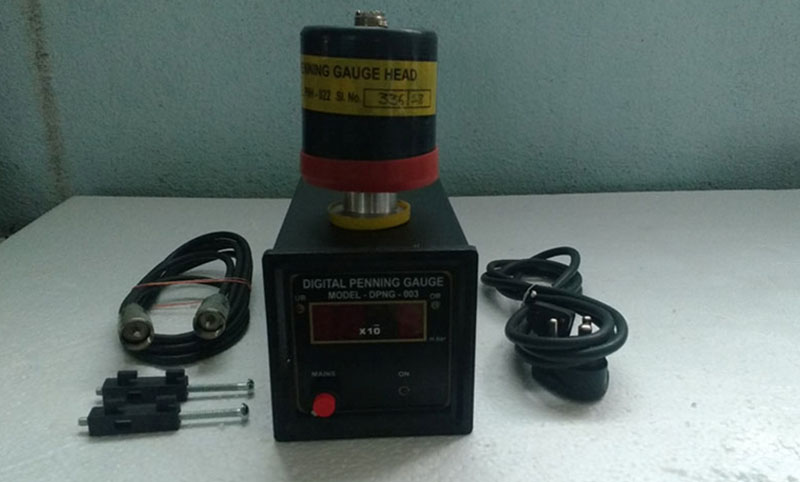

Penning Gauge Head with Digital Display Unit and Cables
Technical Details
- Number of Sensor : 01
- Measuring Rang e: 10-3 mbar to 10-6 mbar
- Vacuum Connection : KF 25
- Digital Display Unit
- Cutout Dimension : 92 mm x 92 mm (DIN Standard)
- Mounting : Flush Panel mount
- Sensor Cable : 02 Mtr
- Sensor Cable End Connection : Plug in type at both ends
- Mains Cable
- Power Supply: 230 V , 50 Hz

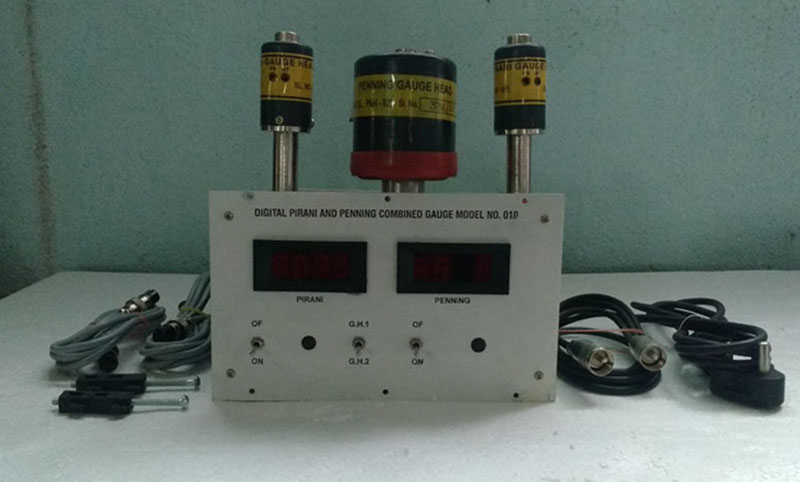

Digital Pirani and Penning Combined Gauge with Digital Display Unit and Cables
Technical Details
- Model No: 010
- Number of Sensors : 03
- Measuring Rang e: 103 mbar to 10-6 mbar
- Vacuum Connection : KF 10 / KF25
- Digital Display Unit
- Sensor Cable : 02 Mtr
- Sensor Cable End Connection : Plug in type at both ends
- Mains Cable
- Power Supply: 230 V , 50 Hz
